首頁 >> 產品中心 >> 制粒干燥機 >> FG 沸騰干燥機
 FG 沸騰干燥機
關鍵詞:干燥機  沸騰干燥機  流化床干燥機  制粒機
產品名稱: FG 沸騰干燥機
產品編號: 6
產品商標:
產品規格: FG
參考價格: 面議
更新日期: 2011/11/27 9:55:19
被閱次數: 1430次


公司名稱:常州市智陽機械設備有限公司
會員級別:免費會員

詳細說明

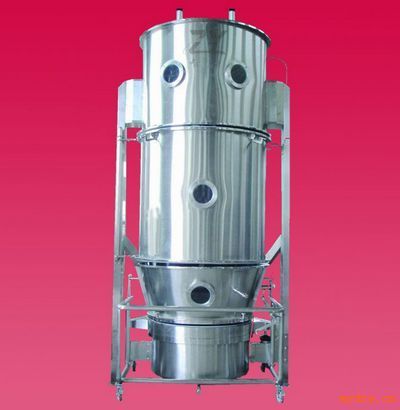

FG 沸騰干燥機

FG FLUID-BED DRYER

應用概述 :General of applications

機適用于粉末或顆粒的干燥,速度為一般烘箱的 10-20 倍。
The machine is suitable for drying powder or granule. In
general, its speed is 10 ~ 20 times of oven.

設備特點:Features of equipment

本設備混合、干燥過程在同一設備內完成。質熱傳遞快,在封閉負壓下操作,無粉塵飛揚,設備無死角,清洗徹底,無交叉污染,加熱可采用蒸汽或電熱。
采用抗靜電過濾材料,濾袋升降以氣動方式操作,操作安全,滿足 GMP 衛生規范要求。
The mixing and drying of the equipment can be finished in same equipment. The transfer of mass and heat is quick. Because of operation at negative pressure, there is no flying dust. The equipment has no dead corner. It can clean is fully and without cross pollution. Its heating may use steam, or electric heater. It adopts antistatic filtering material. The lift of filtering bag adopts pneumatic operaton. So the operation is safe. It meets the requirements of GMP

技術參數:Technical Data

格 Specification

30

60

90

120

150

200

300

500

800-1000

原料容器( L ) Volume of container

100

220

300

420

500

670

1000

1500



按客戶要求設計



By URS

生產能力( kg/ batch ) capacity

30

60

90

120

150

200

300

500

壓強pressure  Mpa

0.4-0.6

蒸汽耗量( kg/h ) Consumption of steam

70

140

169

211

241

282

366

465

壓強pressure  Mpa







0.6









壓縮空氣量( m 3 /min ) Consumption of compressive air

0.3

0.6

0.6

0.6

0.6

0.9

0.9

1.1

風機功率( KW ) Power of fan

5.5

11

15

18.5

22

22

30

45

進風溫度( °C ) Temperature

常溫~ 120°C 自動調節 normal temperature ~ 120 °C automatism adjust

物料收率( % ) Yield of material

>99

終濕含量( % ) Content of final moisture

可達 0.2 can dry to 0.2

噪音 dB Noise

風機隔離處理不大于 75 分貝 No more than 75dB Separated of fan

主機安裝參考尺寸 Installation size for reference

請參考 FL 機型 The same as FL model



所有參數僅作參考 , 視物料情況 , 本公司擁有變更權利 , 并不另行通知 .

*All sizes are used for reference only. According to the condition of material, our factory has the right change but not notice, pardon!
