首頁 >> 產品中心 >> 沸騰干燥機 >> GFG 高效沸騰干燥機
 GFG 高效沸騰干燥機
關鍵詞:沸騰干燥機  流化床干燥機  干燥機  制粒機
產品名稱: GFG 高效沸騰干燥機
產品編號: 5
產品商標:
產品規格: GFG
參考價格: 面議
更新日期: 2011/11/27 9:55:41
被閱次數: 935次


公司名稱:常州市智陽機械設備有限公司
會員級別:免費會員

詳細說明

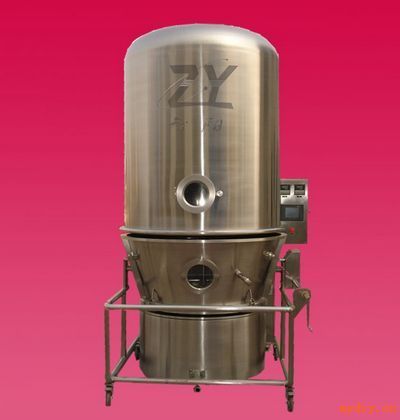

GFG 高效沸騰干燥機

GFG HIGH EFFICIENT FLUID-BED DRYER

應用概述 :General of applications

本機用于制藥、化工、飼料、食品等領域濕顆粒或粉狀物料干燥
※ The machine is suitable for drying damp granule or powder material in many fields such as pharmaceutical industry, chemical industry, feedstuff industry, fooedstuff industry, etc.

設備特點:Features of equipment

※ 床內設置攪拌,避免了潮濕物料的團聚及干燥過程中形成溝流。
※ 頂置布袋過濾器為抗靜電特種纖維,操作安全。
※ 翻傾卸料,方便迅速徹底。
※ 密封負壓操作,按 GMP 規范設計。
※ 本機亦可按要求進行自動進出料設計制作。
干燥速度快,溫度均勻,每批干燥時間均在 20- 30 分鐘。

流化床為圓形結構避免了死角。
※ This fluid-bed is round structure. So it avoid died corner.※ In the bed there is stirrer. It avoid agglomeration of damp material and forming channel flow during drying.
※ The bag filter at top is made from anti-static special fiber. The operation is safe.
※ Discharged by turning over. It is quick, and fully.
※ Operated at sealed negative pressure and designed by GMP
※ The machine can also be designed to feeding and discharge automatically in accordance with requirements.
※ Quick drying speed, uniform temperature. In general, the drying time each batch is about 20 ~ 30 minutes.

技術參數:Technical Data

項目 Item

規格 Specification

投料 Feeding capacity

kg/ 批

㎏ /batch

60

100

120

150

200

300

500

≥800

風機功率 Power of fan

kw

11

15

18.5

22

22

30

37

按用戶要求設計

By URS

攪拌功率 Power of stirring

kw

0.55

1.1

1.1

1.1

1.1

1.1

1.5

攪拌轉速 speed of stirring

rpm

11

蒸汽耗量 consumption of steam

kg/h

141

170

170

240

282

366

451

操作時間 working time

min

15-30

安裝參考圖 Installation size for reference

H1

mm

2676

2842

2862

2940

3014

3300

3650

H2

mm

2366

2532

2552

2630

2704

2800

3150

A

mm

2440

2540

2540

2740

2840

2940

3140

所有參數僅作參考 , 視物料情況 , 本公司擁有變更權利 , 并不另行通知 .

*All datas are used for reference only. According to the condition of material, our factory has the right change but not notice, pardon!
